Name | Function | Parameter range |
Speed | Test speed | 5ms-2s |
Optical parameter testing | Luminous flux measurement range | 10mlm-50000lm |
Photometric measurement accuracy | one-level | |
wavelength range | 350-800nm（customizable） | |
wavelength accuracy | ±0.2nm | |
Color parameter testing | Color temperature measurement range | 1000K—100000K |
Resolution | 1K | |
Color temperature accuracy | ±0.2% | |
Standard accuracy of chromatic seating | ±0.0015 | |
Measurement range of color rendering index | 0-100 | |
Color rendering index test error | ±(0.5%rd+0.5) | |
Color tolerance accuracy | ±0.5SDCM | |
Electrical parameter testing | Voltage range | 0.01V～30.00V |
Current range | 0.1mA～5000.0m A | |
Measurement accuracy | 0.5 level |
● Measure the spectral power distribution, chromaticity coordinates, relevant color temperature, color rendering index, color tolerance, gamut index, fidelity index, peak wavelength, spectral half width, main wavelength, color purity, luminous flux, irradiance, light efficiency, voltage, current, power, power factor, energy efficiency index, energy efficiency level, and other optoelectronic performance parameters of LED and lighting products;

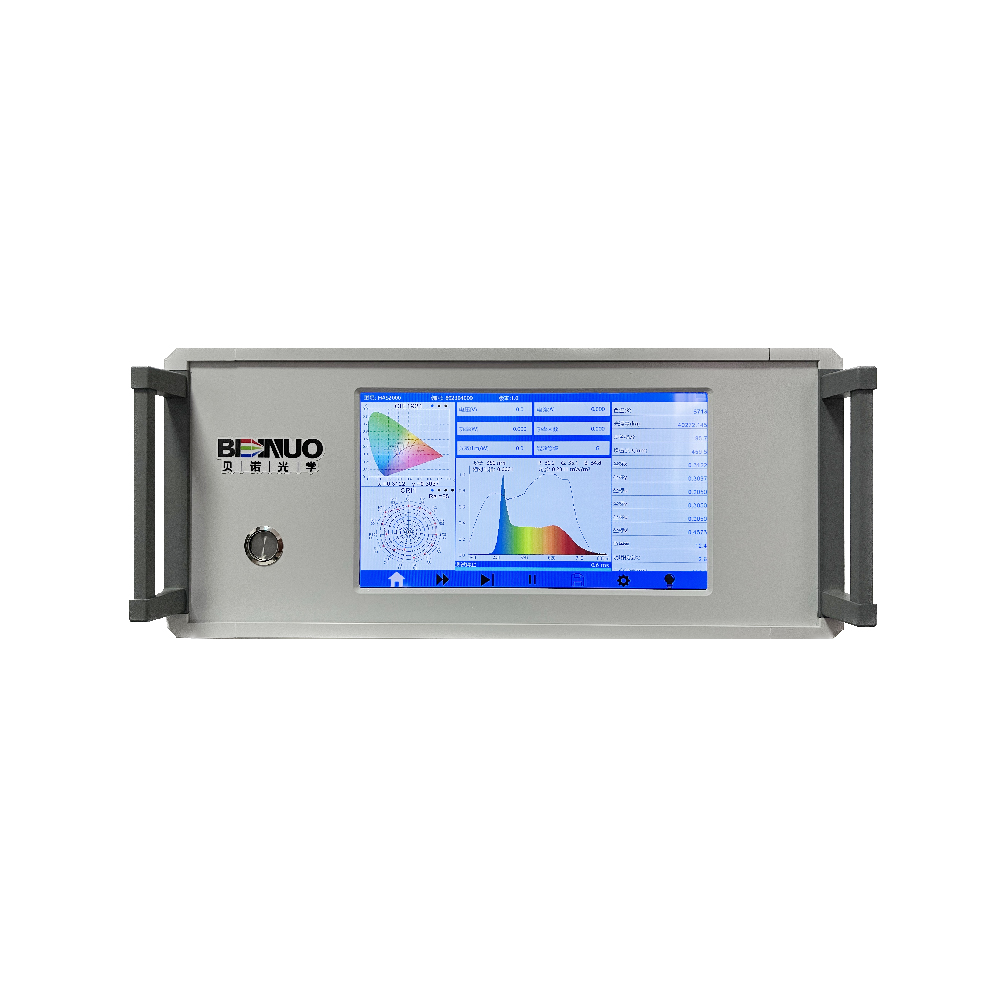

● The instrument has a high degree of intelligence, and the host adopts a high-definition touch screen, which is more intuitive and convenient. Testing stability, high repeatability, fully meeting the measurement requirements for light and color in international and domestic testing;
C、Performance parameters of plant lamps:
PPF(μmol/s)（350-800nm） PPF(μmol/s)（400-700nm）
PPFuv(μmo/s） PPFr(μmol/s) PPFg(μmol/s) PPFb(μmol/s)
PPFfr(μmol/s) PPFfir(μmol/s) PPE(μmol/J) Euv(w/㎡)
Er(w/㎡) Eg(w/㎡) Eb (w/㎡) Efr(w/㎡)
Eir(w/㎡) Ep(w/㎡) Erb
Measure the spectral power distribution of LED and various lighting fixtures, and measure the comprehensive parameters of LED light, color, and electricity. Widely used in lighting fixtures and various LED lighting, plant lighting, special light sources, or LED bead raw material testing. A host is equipped with relevant devices, which fully meets the requirements of various performance tests and analysis of the light source's light, color, and electricity. Suitable for research and development testing in laboratories and quality inspection departments, as well as for rapid testing in production lines. High automation integration, with segmented settings.
