Name | Function | Parameter range |
Speed | Test speed | 5ms-2s |
Optical parameter testing | Luminous flux measurement range | 10mlm～50000lm |
Luminous flux accuracy | ±1% | |
Photometric measurement accuracy | one-level | |
Wavelength range | 350nm~800nm | |
Wavelength accuracy | ±0.2nm | |
Stray | <0.1％ | |
Color parameter testing | Color temperature measurement range | 1000K—100000K |
Resolution | 1K | |
Color temperature accuracy | ±0.2% | |
Standard accuracy of chromatic seating | ±0.0015 | |
Measurement range of color rendering index | 0-100 | |
Color rendering index test error | ±(0.5%rd+0.5) | |
Color tolerance accuracy | ±0.5SDCM | |
Electrical parameter testing | Forward curren(IBFB) | 0.1mA～5000.0m A |
Forward voltage(VBFB) | 0.01V～30.00V | |
Electrical parameter measurement accuracy | 0.5 level |

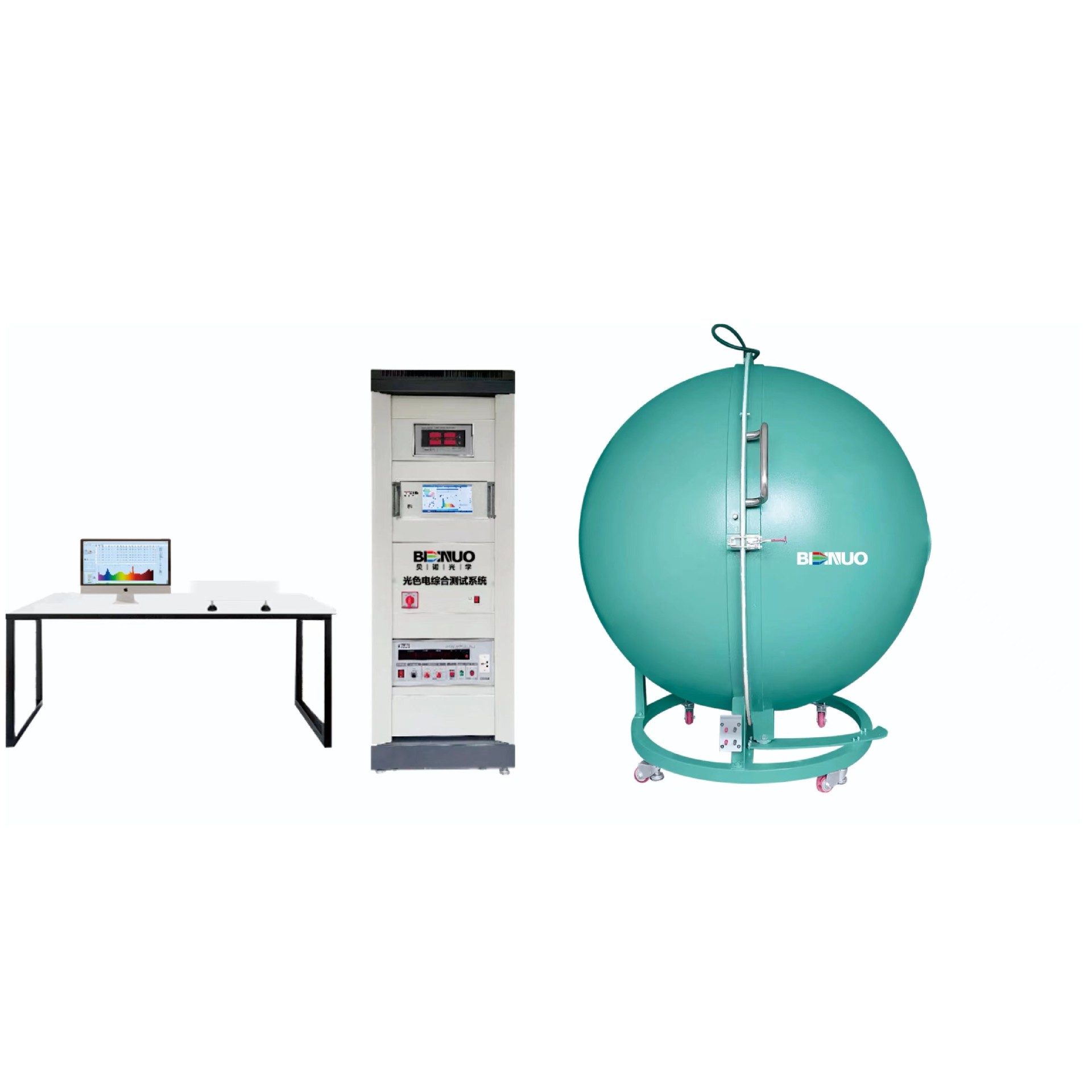

Good human-machine interface based on Windows operating system; Standard SMA905 fiber optic interface, CCD high-speed spectroscopy; High precision, fast testing, and convenient use; Can connect to a printer to print test reports, and save data in Excel for easy analysis; Measure the spectral power distribution of LED and various lighting fixtures, and measure the comprehensive parameters of LED light, color, and electricity. Widely used in lighting fixtures and various LED, LED lighting, special light sources or LED bead raw material testing. A host is equipped with relevant devices, which fully meets the requirements of various performance tests and analysis of the light source's light, color, and electricity. Suitable for research and development testing in laboratories and quality inspection departments, as well as for rapid testing in production lines. High automation integration, with segmented settings.
